Large Detachable Machine Hatch

For loading and unloading large machinery several times a year, large doors are used, but securing space for the turning radius when the door opens and closes or for the retraction space of sliding doors can sometimes be problematic. In such cases, a detachable machine hatch is convenient. Sunwizz also manufactures large fixtures. The illustration below shows a large detachable machine hatch that was actually delivered in the past. Despite being large, the use of core materials such as styrene foam and aluminum frames allows the hatch to be attached and detached by hand. That said, each panel of a large detachable machine hatch weighs a considerable amount, so it is essential to have an adequate number of people for the weight when performing attachment and detachment work, and to pay attention to the surroundings during work to ensure safe operations.

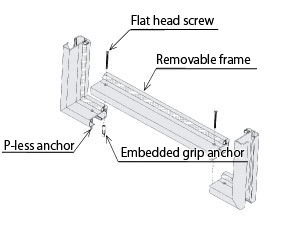

Removable Bottom Frame

The reason detachable machine hatches tend to require large dimensions in both width and height is that they are often installed for loading and unloading large machinery. When loading and unloading large machinery, the first obstacle is the unevenness of the bottom frame. With a 3-sided frame, there is of course no bottom frame, but unevenness of the floor surface affects the fitting. Therefore, even with a 4-sided frame specification that includes a bottom frame, SUNWIZZ offers an option to make the bottom frame detachable, achieving both good fitting and smooth loading and unloading without obstacles. The detachable bottom frame is fixed using grip anchors and small screws, so there is no issue of wear from repeated attachment and detachment causing the screws to lose their grip. We always ship four different lengths of small screws simultaneously. *If the floor level is extremely uneven, the screws may not reach.
